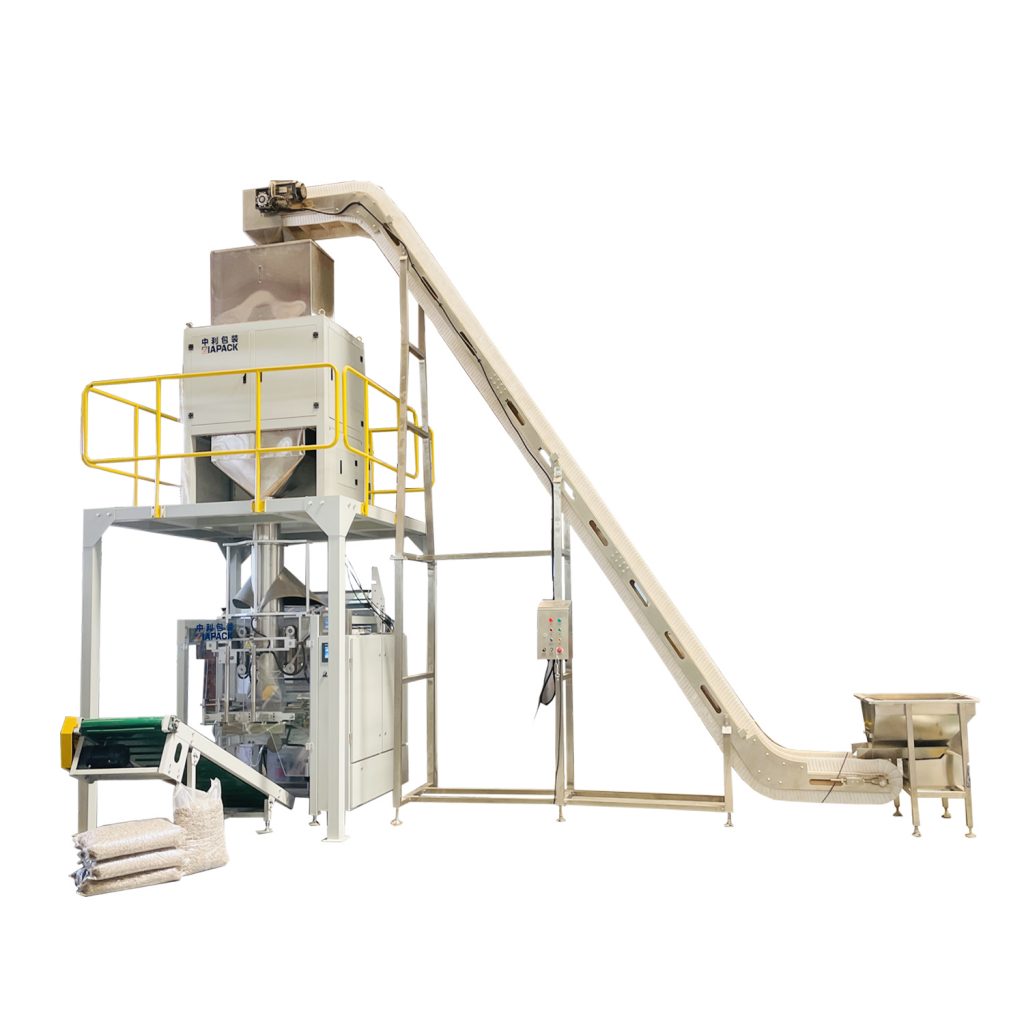

Automatic15-20 kg wooden pellets bag forming filling packaging machine
Uvod :
This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .
Tehnični parametri:
Weighing Range: 1kg-5kg
Packaging Speed:12-30 bags/min
Bag size: (150-420)*(120-350)mm(L*W)
Max film width:720mm
Potreba po stisnjenem zraku: 0,6Mpa 0,65m³/min
Reel outer diameter: 450mm
Notranji premer jedra: 75 mm
Machine weight: 950kg
Power source: 6.5kW 380V±10% 50Hz
Glavne značilnosti in značilnosti:
- Široka paleta vrečk: vrečke za blazine in vrečke.
- Visoka hitrost: 20-50 vrečk/min
- Enostavno upravljanje: krmilnik PLC in barvni zaslon na dotik, prikaz napak na zaslonu na dotik.
- Enostavno prilagajanje: samo 10 minut, da spremenite različne vrečke.
- Kontrola frekvence: hitrost se lahko nastavi s pretvorbo frekvence v območju.
- Visoka avtomatizacija: brez posadke v postopku tehtanja in pakiranja, stroj samodejno zazna napako.
- Varnost in higiena:
- Brez filma, naprava bo alarmirala.
- Alarm stroj in ustavite, ko neustrezen zračni tlak.
- Varnostna varovala z varnostnimi stikali, alarmom stroja in zaustavitvijo, ko so varnostna varovala odprti.
- Hygienic construction, the product contact parts are adopted sus316stainless steel.

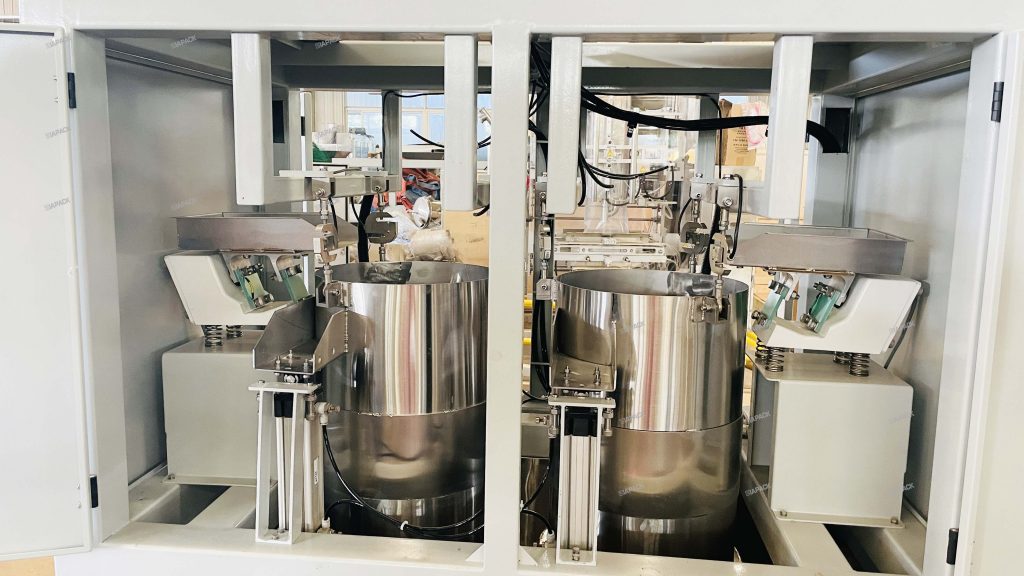

- ZLC2-15k double bucket weighing machine
Uvod :
This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food
Lastnosti:
- 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
- SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
- Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
- Amplitude can be automatically adjusted for easy operation.
- Each hopper can be used as single weigher.
- 6. With cylinder controlfor door open-close control , which is faster and more stable.
- 7. Modular control system for easy maintenance and cost-saving.
Parameter:
Weighing range :10-15kg
Accuracy :±0.5-0.8%
Min scale :0.1gram
Max speed :20-40bag/min
HIM:7” touch screen
Power supply :AC220±10% 50HZ /60HZ 1KW
