Avtomatska stabilo vrečka z zgornjim pakirnim strojem za etikete
This machine is special design for make the gusset bag with flat bottom .After the full bag with product drop on this machine .This
machine will carry the bag ,go through one time bag mouth folding and then stick the label.The machine frame made by SUS304 .PLC and touch screen adopt by Siemens brand .And Pneumatic parts adopt SMC brand .Main Electrical components adopt Omron and Schneider brand.
machine will carry the bag ,go through one time bag mouth folding and then stick the label.The machine frame made by SUS304 .PLC and touch screen adopt by Siemens brand .And Pneumatic parts adopt SMC brand .Main Electrical components adopt Omron and Schneider brand.

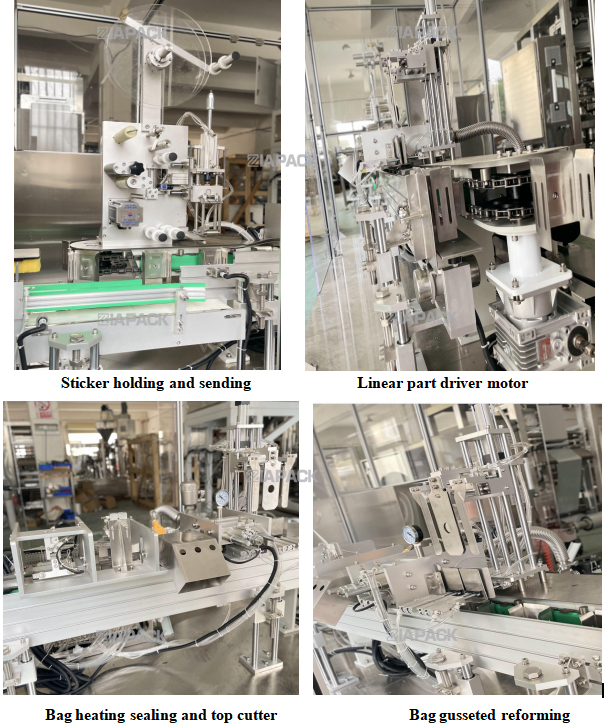

Working station
Bag forming -------------------------------------
Product filling ----------------------------------
Bag receive from VFFS packing machine ----
Bag folding and top pressing ------------------
Bag pre-sealing ---------------------------------
Bag folding and labeling -------------------
Output from Vacuum chamber ----------------
Bag top trimming -------------------------------
Vacuum Bag output-----------------------------
PRODUCT SPECIFICATIONS
Ne | Postavka | Data | ||
1 | Teža embalaže | 100-500gram | 500-1000gram | 1-2kg |
2 | Hitrost pakiranja | 12-30bag/min | 8-20bag/min | 5-12bag/min |
3 | Poraba energije | 15kw | 20kw | |
4 | Širina filma | 420mm | 520mm | 720mm |
5 | Poraba zraka | 0.65cbm/min 8Bar | 0.85cbm/min 8Bar | 1cbm/min 8Bar |
6 | Teža stroja | 2.5ton | 5.5ton | |
7 | Delivery dimention | 40 HQ | ||
8 | Install space | 5.8*2.5*3meter | 6.8*2.5*3meter |
